Once you have the controls you want, how do you connect them to your computer...? Read on. Be sure also to visit the technical page for some specific tips!
|Keyboard Port - Keyboard Hack||-Jump-||-Jump-|
|Keyboard Port - Keyboard Encoder||-Jump-||-Jump-|
|Keyboard Port - Other||-Jump-||-Jump-|
|Keyboard Ghosting & blocking||-Jump-|
A new method of interfacing arcade controls has been added to Happ Controls' product line. They have three new interfaces that will connect their arcade controls via USB port. Being USB compliant, they are plug and play, and offer support for Win9x, DOS, and iMAC! Be sure to check out the serial interface also sold by Happ.
Thanks for the info Peter!
AmigaZoid sent me some information to share... He found a Street Fighter II cabinet to hack for his arcade project. To test things out, he hacked a Microsoft Natural Elite USB keyboard to wire his controls to. He was able to hook up two joysticks with 6 buttons each, and so far has seen no ghosting problems. His keymap can be found here in HTML or in the original MS-Excel format. The nice thing is his PS/2 keyboard is still fully functional, and of course his controller is hot-swappable being that it's USB.
Andy Warne sells a keyboard encoder type of interface called the I-PAC (Interface for PC to Arcade Controls). "The I-PAC is a small board which allows connection of arcade controls such as buttons and joysticks to a keyboard port on a PC motherboard. It was designed to use inside an arcade games cabinet with the PC board also mounted inside. It was designed so that a normal keyboard would only be needed for game loading and configuration, not for gameplay." It has both a USB and keyboard connector.
It runs $39 plus shipping, which includes the interface, one cable, and US-AUS currency exchange. Extra interface cable for I-PAC if required: $5. Only required if you plan to swap interfaces between USB and keyboard at some time.
LED Harness: Pre-assembled cable including 3 Panel-mounting Caps Lock, Scroll Lock, Num Lock LEDs with conical black metal bezels. Plugs into I-PAC. $15 (shipping free with board).
Being USB, it also interfaces with the Mac, and there is a Mac version of the programming software available as well.
It has some special functionality designed
for emulator support, and is programmable - visit his web
site to read all about it :)
Tim Eckel used and recommends the 3D ProgramPad from InterAct. It boasts 10 fire buttons, with 18 programmable functions, and a programmable 8-way digital directional pad. It apparently interfaces with both the joystick port and the keyboard. The buttons are programmable with included software, allowing on-the-fly reconfiguration of the controls for differnt games. Gutting this pad and using it as the basis for your input seems to offer a lot of flexibility.

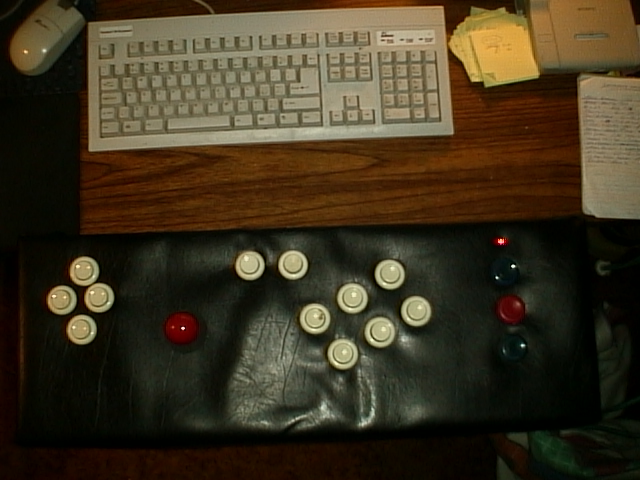

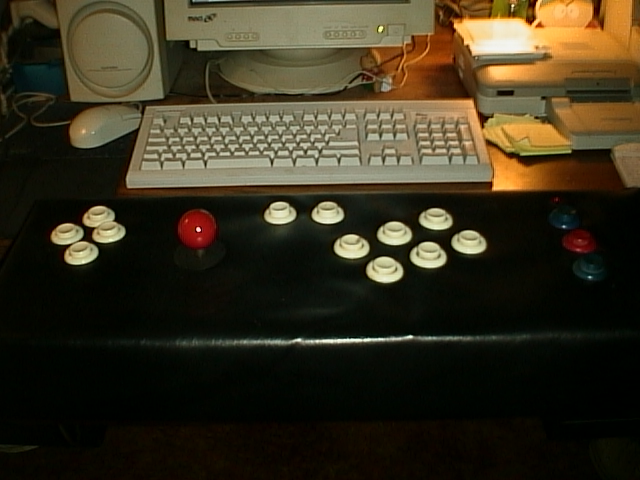

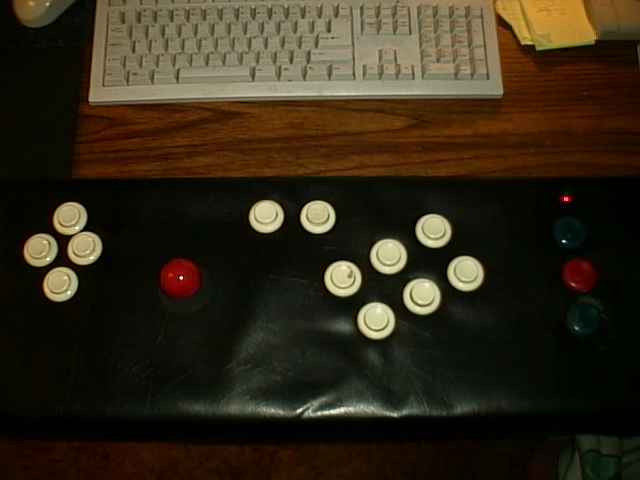

Jerky2 used the Microsoft SideWinder as his joypad to gut. The advantage of this is that there are unused solder points to connect to, and they are apparently labelled, making it an easy joypad to hack. Pictures of Jerky's project can be found here, here and here :)
A company called Lead
Pursuit markets a product called the JoySwitch.
This device lets you plug multiple joysticks into your system simultaneously
and switch between them. It's gotten good reviews (see their web
site for links) but will not work with digital joysticks (MS SideWinder,
WEB SITE NO LONGER AVAILABLE! PLEASE EMAIL IF YOU HAVE ANY INFO!
A company called CH
Products has a similar product called the Joystick
Switchbox. It's another four port adapter that will handle
"all your different peripherals: joysticks, steering wheels, throttles,
gamepads, and pedals." It's activated by pressing the trigger on
the device you want to use - no manual switching involved. They also
say you can connect up to four switchboxes together, giving you up to 13
devices available with the press of a button. They also do not recommend
using digital devices but do not indicate that it *won't* work - just not
PRODUCT NO LONGER AVAILABLE! PLEASE EMAIL IF YOU HAVE ANY INFO!
offers a product called the Joynet Gameport Hub. It connects digital
or analog joysticks, gamepads, and controllers to your PC. Useful for two
player, three player, and four player games. Works with analog and digital
controllers. Has been tested with MS-Sidewinder game controllers.
linked off their web site.
Stephan Hans (yet again!) has a circuit on his web page you can build that does the same thing, switching between the joysticks by holding down the first button on the joystick you wish to activate. The best part about this one is the cost :)
Michael pointed out to me a joystick interface card produced by a company
called PDPI. They have a product called the Lightning
4 (L4) (NOTE: New link to Act Labs who now sells the interface)
that allows up to 4 analog joysticks to be connected at the same time.
Two highlights from Michael's message are that it's 1) relatively inexpensive
(New price! About $73 with all 4 ports enabled), and 2) speedy -
less delay on his controls with 4 joysticks than with 1 joystick into his
sound card's game port. I'll let him tell it in his own words:
Sounds great! Thanks Michael!
Holger Isenberg has a web page featuring a build-it-yourself Digital Joystick-Interface for the PC-Gameport. "This interface connects two Digital Joysticks to a standard 15-pin Analog Gameport-Connector. An additional analog port is built in to switch between the analog and digital joysticks without unplugging them." There's essentially no writeup, just the circuit diagrams. This is one for the electronics buffs.
Got an email from a fellow named Dave Johnson, about a fairly simple and extremely cheap (5 cents per joystick!) circuit he created to interface joysticks to the PC game port. Thanks Dave!
Using two mice
Hagstrom's mouse encoder
Not mentioned by Hagstrom, but I see no reason why you couldn't take the trackball interface with X and Y axis support, and instead use the encoder for two spinner support, assuming your application supports it. The Happ Controls style interface that this encoder supports works the same for both spinners and trackballs.
There are three accessories you might need for the ME4 -- a male/male ps/2 6 foot cable from ME4 to PS/2 port, the ME4 to Happ Trackball cable (3 foot), and the ME4 to Happ spinner cable, (3 foot).
The ME4 is going to cost somewhere around $40, and should be available very soon (I have a prototype). There is presently no information on their web site on the encoder.
The board comes with cables for Happ style trackballs/spinners, which will also work with the Fultra Spinner.
The cost? $39 plus shipping, includes cable for power from I-PAC, and two serial cables (9 pin). Excellent!
Keyboard Port - Hacking a keyboard
Wiring your controls to a keyboard is a bit complex. It is impractical to wire directly to the individual keyboard keys for a variety of reasons. The way most keyboards seem to work is via a matrix -- There's a set of wiring going to one side of the matrix (call it the X axis) and another to the other side (Y axis). If you had 10 wires on the X axis, and 10 on the Y, you have a 10 x 10 matrix, with 100 possible key combinations (just about every keyboard has a unique matrix - to use this technique, you'll have to experiment with your keyboard). For instance, in this example, keys "Q", "A", and "Z" all hook up to the X1 wire. The "Q" key also hooks up to the Y1 wire. "A" hooks up to Y2, and "Z" hooks up to Y3. When you push the "Q" button, it completes a circuit from X1 to Y1. The keyboard controller chip recognizes that as the "Q" button and sends a Q to the computer. Now, using this, instead of wiring our button directly to the "Q" on the keyboard, we wire our "Q" arcade button to X1 and Y1. To get a "A", we wire up our "A" button to X1 and Y2. This is a bit confusing - the best bet is to open up a keyboard and inspect how it works. Stephan Hans' page has a better explanation of this. My dream machine page has information and pictures of my keyboard input setup. Shadow has a complete document on building arcade controls, and discusses the matrix there as well (worth a read).
David passed on to me a piece of software he wrote that displays the keystroke on your screen as you make the connection on the keyboard interface - *excellent* for mapping out your matrix. He wrote his own because he couldn't find one that showed you all the keystrokes, such as displaying the grey extended keys. He's given the ok to share this with everyone here - very much appreciated!
Digital Genesis Technologies has written another keyboard mapping utility for testing keyboard matrixes and has passed the information on for us to share. It can be found on their web page, or on my downloads page. Much appreciated guys!
Tony DeCosa, another regular at Dave's Classics, has produced a step-by-step document on how he created his system called the "Joy of Joys Keyboard." It's a very well done guide documenting how to interface a game pad controller to the keyboard, and how to use arcade controls with his setup. For the ambitious, you can even mount ports in the back of your keyboard to plug your gamepads directly into your keyboard. DeCosa does not have a web site, but he has given me permission to quote from his guide entirely. It is linked to here but was converted from MS-Word to HTML by MS-Word's converter, so may look a bit icky. You can also download the original zipped MS-Word version here.
Dragon's Den has a tutorial
on doing a keyboard hack, and there's an excellent section at EmuAdvice
called Keyboard Hack Info.
Keyboard Port - Keyboard Encoders
Hagstrom Electronics is one of the biggest companies in the arena, offering a variety of products for doing this. Hagstrom links in this section:
|KE-18 encoder||18 inputs, up to a 9 x 9 matrix for 81 inputs.|
|KE-24 encoder||24 inputs, programmable via keyboard or rs-232 port, up to 12 x 12 matrix for 144 inputs.|
|LP-24 encoder||24 inputs, programmable via keyboard only, up to 12 x 12 matrix for 144 inputs.|
|KE-72 encoder||72 distinct inputs, programmable, no matrix but no ghosting, trackball support. The ultimate gamer's interface!|
|Daisy-chaining||What about daisy-chaining two encoders together for more inputs?|
|How-to||How exactly does on use a Hagstrom encoder?|
Using one of these encoders appears to me to be a very efficient method. The KE18 offers either 18 inputs, or a 9 by 9 matrix, depending on how you wish to configure it. The KE24 offers either 24 inputs, or up to a 12 by 12 matrix, and it is programmable via an onboard rs232 port with the software they supply. Using this product would presumably allow you to have multiple configurations for different gaming applications, loadable with a minimum of fuss. Also, since you are directly accessing the controller, you don't need to worry as much about the ghosting effect. It won't totally solve the problem for you however - see the Technical page for more. The folks on the phone were very nice - the KE18 costs $44.95, and the KE24 costs $99.95. --- Thanks to SpyHunter for the input on this one!
A couple of folks have pointed out that Hagstrom sells both a standard speed and a high speed version of their various encoders - you have to ask for the high speed version specifically. To make sure you get the faster model of the KE-24 with the on-the-fly reconfiguration capability (vs. having to shutdown/restart) specify the KE24-FAST model.
Asked Hagstrom about the difference between the two chips as regards to programming - their answer:
ALSO - Hagstrom is now selling a connecter that connects at the I/O header and terminates with leads that you can attach to a barrier switch for easy connect/disconnect.
Got an email on another encoder Hagstrom
sells - the LP24. "It is cheaper than the KE24 and is a more compact
unit without the RS232 port. It can be programmed through the keboard
port (utility included) and has a keyboard passthrough. It can be
configured to custom matrix sizes to scan from 23x1 to 12x12 arrays."
The LP24 sells for $79.00. John also described how he intended to
use the encoder, to help him practically eliminate ghosting problems without
the use of diodes. From his email:
This allows 2 players with 6 buttons each with most/all of the important keys for MAME.
Since joysticks cannot be up and down at the
same time (or left and right) there is no chance of ghosting when these
are assigned to the same column. The only chance of ghosting occurs
are pressed at the same time while holding a joystick off-center (should not happen durring gameplay).
-all of this and no diodes! (of course you could buy a lot of diodes for $79.95)"
Hagstrom came out with an encoder tailor made for the arcade controls community called the KE72 and the KE72T. This fabulous encoder has it's own page.
Daisy Chaining Hagstrom Encoders
Contacted Hagstrom to ask about daisy-chaining
the encoders (The LP-24, KE-18, or KE-24) (for instance for 48 inputs without
a matrix, or (yipes!) up to 288 total?) and what impact this would have.
Short answer: It should work with some caveats - long answer follows:
One thing to bear in mind is that programming encoders that are daisy-chained becomes problematic. They cannot be addressed as one unit, so you'll need to either have two serial ports connected to the two KE-24's, or realize you can only program one LP24 at a time as the "upstream" LP24 cannot be programmed via the keyboard interface. Presumably you would have to program each one at a time then daisy-chain them. This could be a headache if it was buried within a cabinet.
Once again I'm impressed by Hagstrom's quick and helpful responses to my questions.
After several questions from people asking how exactly to use the Hagstrom keyboard encoders, I asked for help from those who had done it. I received several responses, which I really appreciate. The easiest explanation came from the folks at Arcade Solutions. Their well done writeup is on a separate page.
Andy Warne sells a keyboard encoder type of interface called the I-PAC (Interface for PC to Arcade Controls). "The I-PAC is a small board which allows connection of arcade controls such as buttons and joysticks to a keyboard port on a PC motherboard. It was designed to use inside an arcade cabinet with the PC board also mounted inside. It was designed so that a normal keyboard would only be needed for game loading and configuration, not for gameplay." It has both a USB and keyboard connector. It runs $47 which includes the interface, cable, shipping and US-AUS currency exchange. It has some special functionality designed for emulator support - visit his web site to read all about it :) This has proven to be one of the most popular choices so far.
Roy Masters passed along
an interesting product he found, by a company called
Built for Flight-Sim enthusiasts, it's a keyboard-passthru product called
MasterPilot. From Roy's email:
Audon Electronics sells the KBE-1 Keyboard Encoder. It's a non-programmable keyboard encoder with a keyboard passthrough, 102 keys in a 16 x 8 matrix. Think of it as a keyboard hack, with the matrix already set out for you and a keyboard pass through meaning no need for a keyboard splitter! When I asked them about ghosting, they replied:
They sell it for UK £54, shipping to the US for £12.
Vetra has a whole range of keyboard encoders available with a variety of capabilities. They have the SmartWye series (non-programmable) ranging from $50 to $130, the SoftWye series (programmable) for $99, and good news for Mac folks, the McEncoder series for $90. Feedback from anyone dealing with them welcome!
is a build-it-yourself keyboard encoder with the following features:
The web site has hardware instructions, software to program it, and other info related to the encoder. Looks great - anyone building this please let me know!
Dr. D wrote up a review of one of these interfaces. Looks great!
Ron, known in the arcade community for hosting pages on Gauntlet arcade game hacks, has put together a couple of keyboard encoders for folks on this side of the hobby. Both sport similar features, one with 40 inputs, one with 64. The feature list below is lifted from Ron's page:
The encoders can be daisy-chained, with the same considerations as the Hagstrom encoders (can only program the first one, possible voltage drops...). The cost of the MK40 is $53, the MK64 is $63, add $6 shipping to either. There is a 30 day money back guarantee, and a 90 day warranty. It looks great, read a review here.
Wiring kits are also now available!
The KeyWiz is the brainchild of RandyT, another regular on the message forums here at BYOAC. Currently there are three models available, the Eco (Economy model), the standard, and the max. All 3 support the same core set of features. See their links for further details on the differences. This page is due for a huge revamping, so for now I am going to cut and paste from their web site...
Standard KeyWiz Features:
- 32 direct input lines. No Matrix means No Blocking, No Phantom Keys and no variable delays. All inputs are given equal priority and speed.
- 12mhz Processor. Fast RISC based microcontroller. The proprietary KeyWiz firmware is coded in 100% pure Machine Language for blinding speed!
- Custom, State-Based De-bounce Code. Keys are sent the moment the inputs have stabilized. No time delays!
- The Shazaaam! Key. Like the shift key on a keyboard, the Shazaaam! Key lets 24 of your buttons have an alternate key assignment. The Shazaaam! Key does not take away an input, so all 32 inputs are always available for use. Another unique Shazaaam! feature is that, with an additional low-cost adapter, any switch can be modified to send a code from the alternate set with a single button press! This means you can have up to 24 additional switches for secondary functions, and still have all 32 inputs available for primary controls.
- Fully Programmable. All 32 normal and 24 Shazaaam! key definitions can be configured through the custom codeset to suit your application.
- Jumperless Operation. The Custom codeset can be uploaded at any time, with no re-configuration of the hardware required.
- On-The-Fly Codeset Switching. Just hold down the Shazaaam! Key and move control stick 1 left or right to seamlessly toggle between the default MAME compatible keycode assignments and the custom keycode set.
- Whopping 72 Character Circular Buffer. Gives KeyWiz the highest reliability and maximum throughput capabilities without "stuck" or "missed" keys. Also allows KeyWiz to pass the grueling "Single Button Test."
- MAME Ready Right-Out-Of-The-Box. By popular demand, the KeyWiz firmware-default codeset has been made compatible with MAME defaults and includes other useful regular and Shazaaam! Key definitions (Custom firmware-default keycode definitions can be supplied for specialized applications. Contact us for more information).
- Fully Interrupt Driven. The key processing begins the instant activity is sensed on ANY input.
- Full-featured Custom Codeset Management Software. Completely mouse/trackball driven. One-click selection of any of 15 user definable codesets (32 normal and 24 Shazaaam! codes per). Codeset to be active after programming is user-selectable. Command line options for autoprogramming / batch file operation. Screenshots are available here.
- OS independant. The default MAME-compatible keycode definitions are stored in firmware and are available immediately upon power-up. This means KeyWiz can be used with any OS and requires no drivers. The PC thinks the KeyWiz is a standard PS/2 keyboard, but the KeyWiz knows that it is much better :).
- Small Footprint. 2.1 x 3.2 inches. Large enough for easy connections, but small enough to mount just about anywhere.
- 36 Connection Points Available on the PCB. 32 inputs, 2 grounds, 1 Shazaaam! Key, and a +5v connection.
- Completely PS/2 Port Powered. No external power source necessary.
Keyboard Port - Other
Keyboard Ghosting & Blocking
|One potential problem with keyboard controls - whether using a hack or an encoder - is "ghosting" - where pushing several keys at once produces a "ghost" key that wasn't in fact pressed. For instance, using the matrix example from below, we have "Q" = X1-Y1, "A" = X1-Y2, and "Z" = X1-Y3. Suppose as well that "W" = X2-Y1, and "S" = X2-Y2 (see Example Matrix below). If you push "Q", "W", and "S" at the same time, you're pressing X1,Y1,X2,Y2, which would give you "Q" X1Y1, "S" X2Y2, "W" X2Y1, but also "A" because of X1Y2 being connected. (Note - electronics is not my strong point. My specifics may be in error, but the general concept being illustrated is correct.) This could be a problem if, for instance, your fire and movement keys ended up also producing the "quit" key. The way around this is to find a set of keyboard controls that you will use that don't cause ghosting, or that cause ghosting of keystrokes that have no affect, or to use diodes to prevent the affect. Read on for more info...|
|RetroSTIK's creator Brent Geery has been championing a solution to this problem that makes one smack oneself on the forehead and say, "Duh!" He suggested using diodes along your matrix to prevent paths of electrical connection that are undesired.|
|Part II. Unexpectedly, the use of diodes became such a contested point that it merits its own page. Several voices weigh in on one one side or another - a must read if you are going the keyboard hack route.|
|Part III. John sent me an email detailing his use of the LP24 keyboard encoder from Hagstrom. With the matrix he planned out, he should have almost (but not 100% guaranteed) freedom from ghosting, without diodes. Read the details above!|
|Part IV! Check out the write up on Hagstrom keyboard encoders by Arcade Solutions. There's a section in it about techniques to defeat ghosting when using the encoder in matrix mode.|
|Part V! Bugfinder has written up a page hosted at KillerClown's arcade that details keyboard hacks supporting up to 16 keystrokes without the ghosting problem. He lists 4 varying configurations and the keyboard model he used. Worth a look if you're going the keyboard hack route.|
|Part VI! Be sure to see AmigaZoid's USB solution that seems to have avoided ghosting problems at the top of this page.|
|Part VII! Be sure also to check out Dave Dribin's page for a much clearer explanation of ghosting and solutions.|
|Part VIII! Marshall Brooks over at Mameworld'sEmuadvice has a section called Keyboard Hack Info that is a must visit. More details on doing a keyboard hack, and discussion on the ghosting issue.|
|The flip side of ghosting is keyboard blocking. It's based on similar roots as keyboard ghosting, but it has the opposite affect. Push down several keys, then attempt to push another before you let go of the first ones -- often, the last keystroke won't show - it's being "blocked" by the other keys. Both keyboard ghosting and blocking should be tested for before using a particular layout for your keyboard hack.|
Many of the do it yourself projects found in the alternatives section for hooking up game console gamepads use parallel port interfaces. Also, Benji York has updated his Sneskey software and now supports interfacing custom arcade controls, not just console gamepads. I've put a writeup on using SNESKEY for arcade controls on a separate page. See alternatives section for more details on Sneskey! There is also a somewhat dead page (last update November 97) that was starting to collect information on interfacing arcade controls via parallel and serial ports.
Happ Controls Control Interface Board (serial) - From the Happ Controls web site: "The Happ Control Interface Development Kit contains everything needed to provide an interface between any Happ Controls input device (joystick, button, trackball, steering wheel, etc.) and a PC. . . . The kit contains a PCB, power supply, demo and debug software, software drivers and all the necessary cables and documentation to get you going." There are two drivers supplied - one is a DOS driver that would require custom software for any particular game (essentially useless if you aren't designing the game software yourself), and a Windows Direct X driver. The Windows Direct X driver will make whatever device is plugged into this interface show up as a joystick to Win95 (WinNT?), allowing any game that supports Windows Direct X to use the controls. Thanks to ACL for this one! Be sure to also check out the USB interface!
Steffen has had a page up for some time now called How to make a joystick adapter for the PC parallel port. It details how to interface up to 7 joysticks via the parallel port adapter. His adapter is supported by DirectPad Pro, Linux, and the PCE TG16 emulator.

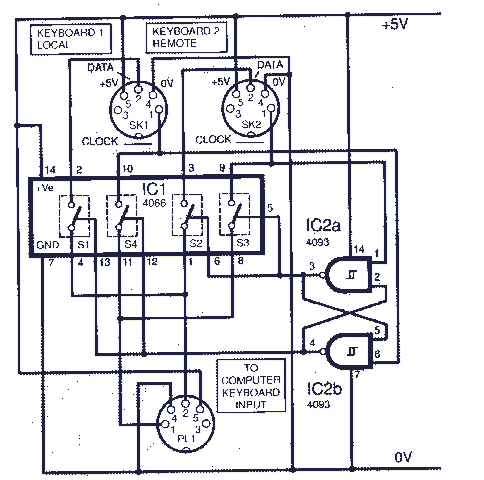

All the various interface methods here work great, but share a common problem. A typical setup might have the joysticks and buttons on the keyboard, and a spinner and trackball on the ps/2 and serial ports. What do you do, however, if you still want to use your keyboard and mouse on the computer? What if you wanted more than one trackball or spinner (although presently that's not too useful as they all control the same pointer)? In this case, there are a variety of adapters you can build or buy to put multiple devices on a single port.
Looking for one of the several Y-mouse and related adapters from P.I. Engineering in the UK? Check out Steadland's International, who have passed on their pricing to me:
GBP = Great British Pounds Sterling, but if you're in the UK you probably knew that :) Prices include shipping, discounts for volume, shipping to rest of Europe slightly higher.
- Mouse adaptors GBP46.70 + VAT
(WHYM-0001 Dual Serial and WHYM-0002 Dual PS/2)
- Keyboard adaptors GBP46.70 + VAT
(WHYM-0004 Y-Key Key)
- Monitor adaptors GBP65.00+ VAT
(WHYM-0006 Y-See Two)
EPIC is the Extended/Programmable
Input Controller from R&R Electronics. It's an interface card for IBM
PCs and compatibles designed for computer enthusiasts, home cockpit builders,
and specialized analog/digital I/O applications that supports:
