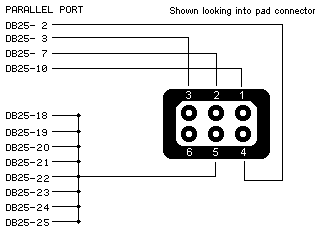

Here is the VirtualBoy schematic, thanks to
Gravis Zero:
Multiple VirtualBoy pads are supported using
the same interface as SNESKEY. For pads 2..5 hook
them up the same as pad 1, but don't make
the DB25-10 connection. Instead, make the
connection according to the following table:
